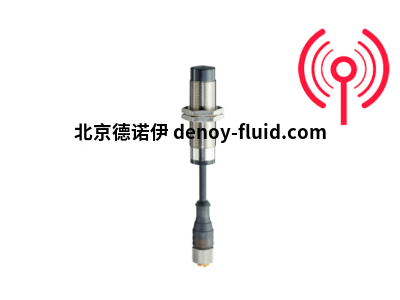

Steute IS M30
金屬外殼
M30 x 1.5螺紋
嵌入式安裝
壽命長，無機械磨損
對污垢不敏感
帶LED
帶預接線電纜或插入式連接器
技術數據
應用標準EN 60947-5-2
外殼黃銅，有刻痕
前蓋聚碳酸酯
防護等級IP 67，符合IEC/EN 60529
連接電纜PVC（4.6 mm）3 x 0.35 mm²或插入式連接器M12 x 1
開關元件1 NO觸點，PNP，3線
額定開關距離sn 10 mm
校正系數鋼（Fe360）=1；不銹鋼約0.7；黃銅約0.5；鋁約0.4；銅約0.4
額定工作電壓范圍UB 10…30 VDC
殘余波紋≤10%
開關電流。零點二一
Ie時的電壓降。1.8伏
24 VDC時電流吸收<15 mA
滯后約。10%
開關頻率300 Hz
重復性≤3%
保護電路感應干擾保護、極性反轉保護、短路保護和過載保護
LED顯示屏在啟動時亮起黃色
環境溫度-25°C…+85°C
帶預接線電纜
類型 物料編號
Steute IS M30b 10AAACA PNP NO 2m1202194
帶插入式連接器
類型 物料編號
Steute IS M30b 10AAAC PNP 無 ST21202196
| 品牌 | 貨號 | 型號 |
| AQ | D72 | Ultrasound Controller D72 Rev.E |
| AQ | FCP10-25 | FCP10-25 Air Sensor PP 10mm TC25 certificate included |
| AQ | FCP14-25 | FCP14-25 Air Sensor PP 14mm TC25 certificate included |
| AQ | FCP22-50 | FCP22-50 Air Sensor PP 22mm TC50 certificate included |
| AQ | FCP4-25 | FCP4-25 Air Sensor PP 4mm TC25 certificate included |
| AQ | FCP6-25 | FCP6-25 Air Sensor PP 6mm TC25 certificate included |
| AQ | SAC10-25 2.Gen | SAC10-25 without cable, Air Sensor 316L 10mm TC25 con Material 3.1B and Ra<0.375um certificate included |
| AQ | SAC16-25 2.Gen | SAC16-25 without cable, Air Sensor 316L 16mm TC25 con Material 3.1B and Ra<0.375um certificate included |
| AQ | SAC22-50 2.Gen | SAC22-50 without cable, Air Sensor 316L 22mm TC50 con Material 3.1B and Ra<0.375um certificate included |
| AQ | SAC22-50-EX 2.Gen | SAC22-50-EX without cable, Air Sensor 316L 22mm TC50 Ex SP17ATEX3654X - II 1/2G Ex ib IIB T4 Ga/Gb Material 3.1B and Ra<0.375um certificate included |
| AQ | SAC35-50 2.Gen | SAC35-50 without cable, Air Sensor 316L 35mm TC50 con 6,00 pcs 2 332,00 30,0 9 794,40 Material 3.1B and Ra<0.375um certificate included |
| AQ | SAC35-50-EX 2.Gen | SAC35-50-EX without cable, Air Sensor 316L 35mm TC50 Ex SP17ATEX3654X - II 1/2G Ex ib IIB T4 Ga/Gb Material 3.1B and Ra<0.375um certificate included |
| AQ | SAC4.5-25 2.Gen | SAC4.5-25 without cable, Air Sensor 316L 16mm TC25 con Material 3.1B and Ra<0.375um certificate included |
| AQ | SAC6-25 2.Gen | SAC6-25 without cable, Air Sensor 316L 16mm TC25 con Material 3.1B and Ra<0.375um certificate included |
| AQ | WG-Cable-7M Ex, 2.Gen. | Blue Cable 7Meter, angled conn, los, for SAC |
| AQ | WG-Cable-7M, 2.Gen | Grey Cable 7Meter, angled connect, los, for SAC |
| AQ | SAC8-25 2.Gen | SAC8-25 without cable, Air Sensor 316L 7.75mm TC25 Material 3.1B and Ra<0.375um certificate included |
